How to deploy an ICO smart contract on TomoChain
Creating a TRC20 Token Crowdsale with Truffle and OpenZeppelin
This article will go through the process of creating a basic ICO on TomoChain using TRC20 tokens issued on TomoChain.

In this tutorial we will be covering:
- What is an ICO?
- Some important concepts such as TRC20, total supply, whitelist, ...
- Using Truffle framework and OpenZeppelin code framework
- Writing a TRC20 token (TomoChain) smart contract
- Writing a Crowdsale smart contract
- Deploying your ICO smart contract to TomoChain testnet or Ethereum/Ropsten (it is totally compatible!)
- Buying the new ICO tokens
An ICO (Initial Coin Offering) is a new way to raise funds for startups. It is the cryptocurrency equivalent to an IPO in the mainstream investment world. A company looking to create a new coin, app, or service launches an ICO. Investors buy the new ICO token, normally with preexisting digital tokens like TOMO. The company holding the ICO uses the investor funds as a means of furthering its goals, launching its product, or starting its digital currency. ICO rounds are similar to venture capitalists (VC) rounds.
Tokens are essentially smart contracts that make use of the TomoChain blockchain. The TRC20 token standard defines a common list of rules for all TomoChain tokens to follow, similar to the ERC20 standard in Ethereum.
In the smart contract you can setup general token specifics like the rate of TOMO per token (the number of tokens the user gets for his TOMO which may change with time), the ICO start and finish date, time-line bonuses…
The total supply is the total amount of tokens that will exist. For instance, TomoChain’s total supply is 100 million tokens, but currently there are only 58–60 million tokens in circulation. The remaining tokens are locked for different purposes like team reserves, partnerships, masternode and staking rewards, community rewards and more, and will enter in circulation over the next years.
ICOs can have one or multiple rounds. For instance, a PreSale round for private investors with some bonus, and later a public Crowdsale.
Some ICOs use a whitelist. This means that participants have to register in advance to participate in the ICO sale. Whitelists usually limit the number of spots and/or the initial min/max buy. Investors may need to register with some documents, to comply with some countries regulations, KYC/AML…
Besides the law, take into account the security issue for the smart contracts and try to make contracts as simple as possible (security loves simple).
The idea of a crowdsale, ICO, or a token sale is simple. You can automate exchanging your tokens for the base cryptocurrency (like ETH or TOMO), and you do it with a smart contract
The smart contract that we use in this tutorial is very simple and only for educational purposes. In fact, the scenario for an ICO is more complicated and needs to be tested and audited to prevent bugs. Finally, compliance with the laws and regulations of the country where the ICO is conducted should be adhered to.
This tutorial will walk through the steps of setting up an account through issuing an ICO contract on TomoChain network using simple smart contracts and MetaMask.
For this tutorial we are using:
- Truffle, a world class development environment, testing framework and asset pipeline for blockchains using the Ethereum Virtual Machine (EVM), aiming to make life as a developer easier.
- OpenZeppelin, a battle-tested framework of reusable smart contracts for Ethereum and other EVM blockchains.
- 1.Write Solidity smart contracts
- 2.Deploy locally (local Eth node/Ganache/Ropsten/etc) and test it
- 3.Deploy to TomoChain TestNet and test it
- 4.Deploy to TomoChain MainNet
To start building your ICO smart contract you will need:
- Install Truffle
npm install -g truffle
Create a new directory in your development folder of choice and then move inside it. Then start a new
Truffle
project:mkdir trc20-crowdsale-tutorial
cd trc20-crowdsale-tutorial
truffle init
Now we install
OpenZeppelin
in this folder:npm install openzeppelin-solidity
You will need a wallet address and some tokens. We will show how to do it on both TomoChain Testnet and Mainnet.
Create a new TOMO wallet using TomoWallet mobile app for iOS or the web version. Under Settings go to Advanced Settings. Here Choose network and select
TomoChain TestNet
or TomoChain
[mainnet].Go to the Settings menu, select Backup wallet and then Continue. Here you can see your wallet’s private key and the 12-word recovery phrase. Write down the 12-word recovery phrase.

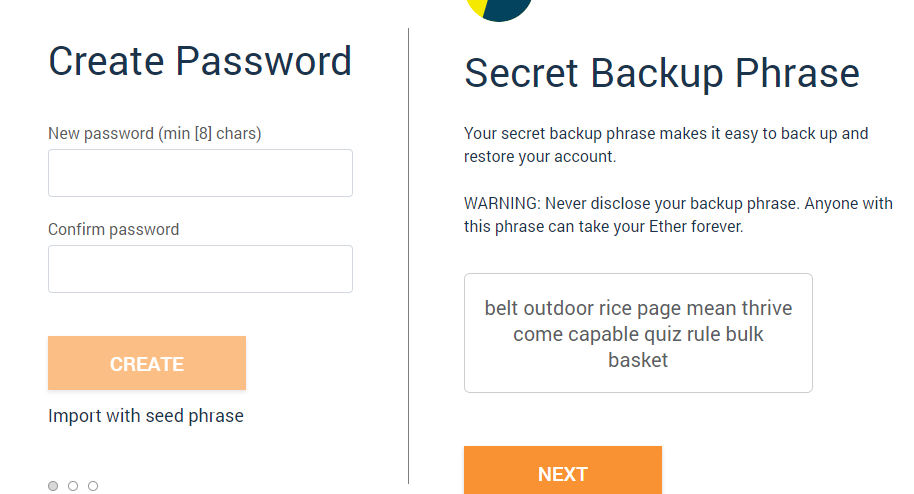

You can also create a new TomoChain wallet with MetaMask, MyEtherWallet or TrustWallet. For instance, for mainnet go to MyEtherWallet and select TOMO (tomochain.com) instead of Ethereum. Enter a password and then Create a new wallet. Write down your recovery phrase.
For this tutorial, my wallet address (testnet) is:
0xc9b694877acd4e2e100e095788a591249c38b9c5
My recovery phrase (12-word
mnemonic
) is:myth ahead spin horn minute tag spirit ... camera
Write them down. This will be needed later. Notice that your wallet address and your recovery phrase will be different than mine.
⚠️ Important! Always keep your private key and recovery phrase secret!
We will need some tokens for smart contract deployment and also to test later with our ICO smart contracts.
Mainnet: You need real TOMO tokens from exchanges.
Go to faucet and collect
60 TOMO
. Now your wallet has enough balance to do everything in this tutorial so… let’s go ahead!To check the balance of a wallet address, use TomoScan.
Note: Create 2 different TOMO wallets, both with some tokens. The first wallet is to deploy the ICO smart contract ordeployment wallet
, the second one will be used to test it orbuyer wallet
.
We use and extend OpenZeppelin contracts to create more secure Dapps in less time. OpenZeppelin comes with a wide array of smart contracts for various important functions.
- 1.Go to
contracts/
directory and create a new file calledMyToken.sol
or the name you like. - 2.Copy the following code
pragma solidity ^0.5.2;import "openzeppelin-solidity/contracts/token/ERC20/ERC20.sol";
import "openzeppelin-solidity/contracts/token/ERC20/ERC20Detailed.sol";
import "openzeppelin-solidity/contracts/ownership/Ownable.sol";/**
* @title ERC20Detailed token
* @dev The decimals are only for visualization purposes.
* All the operations are done using the smallest and indivisible token unit,
* just as on Ethereum all the operations are done in wei.
*/
contract MyToken is ERC20, ERC20Detailed, Ownable {
constructor(
string memory _name,
string memory _symbol,
uint8 _decimals,
uint256 _initialSupply
)
ERC20Detailed(_name, _symbol, _decimals)
public
{
_mint(msg.sender, _initialSupply * 10 ** uint256(_decimals));
}}
That’s all. Really.
Hold on a minute… Are you telling me that this is the full code of an ERC20 / TRC20 token? Exactly. This is the beauty of inheritance and extending OpenZeppelin smart contracts. Currently, see the first few lines? All the code included in
openzeppelin-solidity/contracts/token/ERC20/ERC20.sol
and openzeppelin-solidity/contracts/token/ERC20/ERC20Detailed
can be used and extended (update/overwrite) by this token.We’re extending
ERC20
, ERC20Detailed
and Ownable
smart contracts, by OpenZeppelin. This means that we will have all the functionality of those smart contracts plus the code we add to our file MyToken.sol
.This code will initialize the token values like
name
, symbol
, decimals
(we do this using ERC20Detailed
). With the _mint()
instruction we are pre-minting (creating) all the initialSupply
(the total amount of tokens that will be created). All the tokens will be sent to the wallet address of the MyToken
contract. We give the entire supply to the deploying account’s address._mint(msg.sender, _initialSupply * 10 ** uint256(_decimals));
⚠️ Important: All currency math is done in the smallest unit of that currency, which is not ETH (or TOMO) but wei.1 ETH = 10¹⁸ wei
Later, we will grant access to these funds to the
MyTokenCrowdsale
smart contract. To transfer ownership or approve another wallet accesing our smart contract funds, we inherited the Ownable
smart contract.Now we are going to write our Crowdsale smart contract.
- 1.In the
contracts/
folder, add a new file calledMyTokenCrowdsale
(or the name you like). - 2.Open the file and paste this code:
pragma solidity ^0.5.2;import "openzeppelin-solidity/contracts/token/ERC20/ERC20.sol";
import "openzeppelin-solidity/contracts/crowdsale/Crowdsale.sol";
import "openzeppelin-solidity/contracts/crowdsale/emission/AllowanceCrowdsale.sol";contract MyTokenCrowdsale is Crowdsale, AllowanceCrowdsale { constructor(
uint256 _rate,
address payable _wallet,
ERC20 _token,
address _tokenWallet
)
Crowdsale(_rate, _wallet, _token)
AllowanceCrowdsale(_tokenWallet)
public
{ }
}
Again, very simple smart contract.
We extended OpenZeppelin’s basic
Crowdsale
and AllowanceCrowdsale
. Crowdsale works with rate
, wallet
(the address of MyTokenCrowdsale contract), token
(the TRC20 token).We extended AllowanceCrowdsale so this contract will be able to access and send tokens stored in another wallet, once approved by the owner of the tokens — which is
MyToken
.In the
migrations/
directory, create a new file called2_deploy_contracts.js
and add the following content:const MyToken = artifacts.require("./MyToken.sol");
const MyTokenCrowdsale = artifacts.require("./MyTokenCrowdsale.sol");const web3 = require("web3-utils");module.exports = (deployer, network, [owner]) => { const _name = "My Token TRC20";
const _symbol = "MYT";
const _decimals = 18;
const _initialSupply = 16000000;
const _rate = 500;
const _crowdsaleTokens = web3.toWei("8000000", "ether");
return deployer
.then(() => deployer.deploy(MyToken, _name, _symbol, _decimals, _initialSupply))
.then(() => deployer.deploy(MyTokenCrowdsale, _rate, owner, MyToken.address, owner))
.then(() => MyToken.deployed())
.then(token => token.approve(MyTokenCrowdsale.address, _crowdsaleTokens ));
};
We are going to explain briefly what is happening here:
We have selected the name of our token:
My Token TRC20
. We have chosen the symbol MYT
for this token. We assign 18 decimals
which is standard.We are also going to create the initial supply:
16'000'000
tokens. But we will only sell half (50%) of them in the Crowdsale.We first deploy
MyToken
, creating the initial supply: 16'000'000 MYT
. Then we deploy MyTokenCrowdsale
. Next, we tell MyToken
to approve
the MyTokenCrowdsale
address to access 8'000'000 MYT
. This is the max that we will sell in our Crowdsale.One more thing. For this to work, we need to install
web3-utils
. We use this for big numbers like web3.toWei()
function, because we need 8'000'000
followed by 18 zeros. Just execute this on the console:npm install web3-utils
Before starting the migration, we need to specify the blockchain where we want to deploy our smart contracts, specify the address to deploy — the wallet we just created, and optionally the gas, gas price, etc.
1. Install Truffle’s
HDWalletProvider
, a separate npm package to find and sign transactions for addresses derived from a 12-word mnemonic
.npm install truffle-hdwallet-provider
2. Open
truffle.js
file (truffle-config.js
on Windows). You can edit here the migration settings: networks, chain IDs, gas... You have multiple networks to migrate your ICO, you can deploy: locally, to ganache
, to public Ropsten (ETH)
testnet, to TomoChain (testnet)
, to TomoChain (Mainnet)
, etc…The official TomoChain documentation — Networks is very handy. Both Testnet and Mainnet network configurations are described there. We need the
RPC endpoint
, the Chain id
and the HD derivation path
.Replace the
truffle.js
file with this new content:/**
* Use this file to configure your truffle project. It's seeded with some
* common settings for different networks and features like migrations,
* compilation and testing. Uncomment the ones you need or modify
* them to suit your project as necessary.
*
* More information about configuration can be found at:
*
* truffleframework.com/docs/advanced/configuration
*
* To deploy via Infura you'll need a wallet provider (like truffle-hdwallet-provider)
* to sign your transactions before they're sent to a remote public node. Infura API
* keys are available for free at: infura.io/register
*
* You'll also need a mnemonic - the twelve word phrase the wallet uses to generate
* public/private key pairs. If you're publishing your code to GitHub make sure you load this
* phrase from a file you've .gitignored so it doesn't accidentally become public.
*
*/const HDWalletProvider = require('truffle-hdwallet-provider');
const infuraKey = "a93ffc...<PUT YOUR INFURA-KEY HERE>";// const fs = require('fs');
// const mnemonic = fs.readFileSync(".secret").toString().trim();
const mnemonic = '<PUT YOUR WALLET 12-WORD RECOVERY PHRASE HERE>';module.exports = {
/**
* Networks define how you connect to your ethereum client and let you set the
* defaults web3 uses to send transactions. If you don't specify one truffle
* will spin up a development blockchain for you on port 9545 when you
* run `develop` or `test`. You can ask a truffle command to use a specific
* network from the command line, e.g
*
* $ truffle test --network <network-name>
*/ networks: {
// Useful for testing. The `development` name is special - truffle uses it by default
// if it's defined here and no other network is specified at the command line.
// You should run a client (like ganache-cli, geth or parity) in a separate terminal
// tab if you use this network and you must also set the `host`, `port` and `network_id`
// options below to some value.
development: {
host: "127.0.0.1", // Localhost (default: none)
port: 8545, // Standard Ethereum port (default: none)
network_id: "*", // Any network (default: none)
}, // Another network with more advanced options...
// advanced: {
// port: 8777, // Custom port
// network_id: 1342, // Custom network
// gas: 8500000, // Gas sent with each transaction (default: ~6700000)
// gasPrice: 20000000000, // 20 gwei (in wei) (default: 100 gwei)
// from: <address>, // Account to send txs from (default: accounts[0])
// websockets: true // Enable EventEmitter interface for web3 (default: false)
// }, // Useful for deploying to a public network.
// NB: It's important to wrap the provider as a function.
ropsten: {
//provider: () => new HDWalletProvider(mnemonic, `https://ropsten.infura.io/${infuraKey}`),
provider: () => new HDWalletProvider(
mnemonic,
`https://ropsten.infura.io/${infuraKey}`,
0,
1,
true,
"m/44'/889'/0'/0/", // Connect with HDPath same as TOMO
),
network_id: 3, // Ropsten's id
gas: 5500000, // Ropsten has a lower block limit than mainnet
// confirmations: 2, // # of confs to wait between deployments. (default: 0)
// timeoutBlocks: 200, // # of blocks before a deployment times out (minimum/default: 50)
// skipDryRun: true // Skip dry run before migrations? (default: false for public nets )
}, // Useful for deploying to TomoChain testnet
tomotestnet: {
provider: () => new HDWalletProvider(
mnemonic,
"https://testnet.tomochain.com",
0,
1,
true,
"m/44'/889'/0'/0/",
),
network_id: "89",
gas: 2000000,
gasPrice: 10000000000000, // TomoChain requires min 10 TOMO to deploy, to fight spamming attacks
}, // Useful for deploying to TomoChain mainnet
tomomainnet: {
provider: () => new HDWalletProvider(
mnemonic,
"https://rpc.tomochain.com",
0,
1,
true,
"m/44'/889'/0'/0/",
),
network_id: "88",
gas: 2000000,
gasPrice: 10000000000000, // TomoChain requires min 10 TOMO to deploy, to fight spamming attacks
}, // Useful for private networks
// private: {
// provider: () => new HDWalletProvider(mnemonic, `https://network.io`),
// network_id: 2111, // This network is yours, in the cloud.
// production: true // Treats this network as if it was a public net. (default: false)
// }
}, // Set default mocha options here, use special reporters etc.
mocha: {
// timeout: 100000
}, // Configure your compilers
compilers: {
solc: {
version: "0.5.2", // Fetch exact version from solc-bin (default: truffle's version)
// docker: true, // Use "0.5.1" you've installed locally with docker (default: false)
// settings: { // See the solidity docs for advice about optimization and evmVersion
// optimizer: {
// enabled: false,
// runs: 200
// },
// evmVersion: "byzantium"
// }
}
}
}
3. Remember to update the
truffle.js
file using your own wallet recovery phrase. Copy the 12 words obtained previously and paste it as the value of the mnemonic
variable.const mnemonic = '<PUT YOUR WALLET 12-WORD RECOVERY PHRASE HERE>';
If you want to use
Ropsten
(Ethereum) to deploy, you should update your infuraKey
. Otherwise you can ignore this line:const infuraKey = "a93ffc...<PUT YOUR INFURA-KEY HERE>";
Our Solidity code works perfectly on Ethereum (deploying toRopsten
) and the exact same code works too onTomoChain
. — Nice! Totally compatible!
⚠️ Warning: In production, we highly recommend storing themnemonic
in another secret file (loaded from environment variables or a secure secret management system), to reduce the risk of the mnemonic becoming known. If someone knows your mnemonic, they have all of your addresses and private keys!
Also, the use of environment variable for mnemonics is a good practice if multiple developers work on the same code stored on a remote repo and they can use their different mnemonics to test/deploy the contract.
You can try with npm package
dotenv
to load an environment variable from an .env
file, — then update your truffle.js to use this secret mnemonic
.You should have your smart contract already compiled. Otherwise, now it’s a good time to do it with
truffle compile
.Back in our terminal, migrate the contract to TomoChain testnet network (remember that you need some testnet
TOMO
on your wallet):truffle migrate --network tomotestnet
To deploy to TomoChain mainnet is very similar:
truffle migrate --network tomomainnet
You could also migrate the contract to Ropsten (but first you need a Ropsten wallet with some
Ropsten ETH
- you can do this on Metamask
with faucet).truffle migrate --network ropsten
Deployment is waaay faster on TomoChain!
The migrations start…
Starting migrations...
======================
> Network name: 'tomotestnet'
> Network id: 89
> Block gas limit: 840000001_initial_migration.js
======================Deploying 'Migrations'
----------------------
> transaction hash: 0xb04b1a80cfedbcb8248817301c0c9384ee41099a4c25266a61cae87c76cafc05
> Blocks: 2 Seconds: 5
> contract address: 0xf227316d891D0D83a04d5C6EE0A745585DdAE1a7
> account: 0x169397F515Af9E93539e0F483f8A6FC115de660C
> balance: 46.26451
> gas used: 273162
> gas price: 10000 gwei
> value sent: 0 ETH
> total cost: 2.73162 ETH> Saving migration to chain.
> Saving artifacts
-------------------------------------
> Total cost: 2.73162 ETH2_deploy_contracts.js
=====================Deploying 'MyToken'
-------------------
> transaction hash: 0xd084fcd12c9e05397abfffc78e680a2415f061d0d36d3a13ac416b798f4d0f19
> Blocks: 0 Seconds: 0
> contract address: 0xd2e70E8386C9E3DeCA6583686a12F8da62b59969
> account: 0x169397F515Af9E93539e0F483f8A6FC115de660C
> balance: 29.38373
> gas used: 1646050
> gas price: 10000 gwei
> value sent: 0 ETH
> total cost: 16.4605 ETHDeploying 'MyTokenCrowdsale'
----------------------------
> transaction hash: 0x3f375af43846307544d7d7652994f2bb9264a743aa064f7b8c1c92e68530502c
> Blocks: 0 Seconds: 0
> contract address: 0xD102e777e893f30cb9630a32A9370ED6d575226B
> account: 0x169397F515Af9E93539e0F483f8A6FC115de660C
> balance: 21.24818
> gas used: 813555
> gas price: 10000 gwei
> value sent: 0 ETH
> total cost: 8.13555 ETH> Saving migration to chain.
> Saving artifacts
-------------------------------------
> Total cost: 24.59605 ETHSummary
=======
> Total deployments: 3
> Final cost: 27.32767 ETH
Congratulations! You have already deployed your ICO smart contracts to TomoChain. The deployment fees have costed
27.32 TOMO
.Read carefully and write down the output text on the screen:
MyToken
contract address is:
0xd2e70E8386C9E3DeCA6583686a12F8da62b59969
MyTokenCrowdsale
contract address is:
0x169397F515Af9E93539e0F483f8A6FC115de660C
- Error:
smart contract creation cost is under allowance
. Why? Increasing transaction fees for smart contract creation is one of the ways TomoChain offers to defend against spamming attacks. Solution: edittruffle.js
and add more gas/gasPrice to deploy. - Error:
insufficient funds for gas * price + value
. Why? You don’t have enough tokens in your wallet for gas fees. Solution: you need more funds in your wallet to deploy, go to faucet and get more tokens.
Here are the results of our migrations:
Ropsten:
TomoChain testnet:

Congratulations! You’ve deployed your ICO smart contract and TRC20 token to TomoChain using Truffle and OpenZeppelin. It’s time to interact now with our ICO smart contract to make sure it does what we want.
The code used in this tutorial is just for learning purposes. When writing your ICO contracts take time to test and audit your own code, writing unit tests on
test/
folder and auditing your code to prevent bugs or hacks.The last step is testing our ICO. We will buy some
MYT
tokens with TOMO
!For this, we will directly send some
TOMO
tokens to the Crowdsale contract address, and the smart contract must send back the new TRC20 token we created, MYT
.The conversion rate is
500
. So, if we send 20 TOMO
we should receive 20 * 500 = 10'000 MYT
in our buyer wallet.- 1.
- 2.Once installed, you’ll see the MetaMask fox icon next to your address bar. Click the icon and MetaMask will open up.
- 3.Create a New password. Then, write down the Secret Backup Phrase and accept the terms. By default, MetaMask will create a new Ethereum address for you.

4. Now we’re connected to the Ethereum network,with a brand new wallet.
Let’s now connect MetaMask to
TomoChain (testnet)
.1. Click the menu with the “Main Ethereum Network” and select Custom RPC. Use the Networks data from TomoChain (testnet) and click Save.

2. The network name at the top will switch to say “TomoChain testnet”. Now that we are on TomoChain network we can import TomoChain wallets.
Don’t use thedeployment wallet
you previously used ontruffle.js
. Better, create a new TOMO wallet, to separate roles. Create yourbuyer wallet
, if you haven’t already, then go to faucet and add30 TOMO
.
3. Copy the private key of your
buyer wallet
. Back to MetaMask, click on the top-right circle and select Import Account. Paste the private key and voilà! Your TOMO wallet is loaded in MetaMask.
We will now buy some
MyToken (MYT)
from the ICO Crowdsale contract.1. Copy the Crowdsale contract
address
. Here is the address in our example (your Crowdsale address will be different)0xD102e777e893f30cb9630a32A9370ED6d575226B
2. Go to MetaMask, connecting to
TomoChain testnet
and using your buyer wallet with enough funds. Click the Send button.3. Paste the
Crowdsale address
. Set the amount 20 TOMO
you want to send. Select the Transaction Fee (gas, gas price) and click Next. After a few seconds your transaction will be confirmed as successful.
You can see the Crowdsale buy transaction.
20 TOMO
were sent, and the contract sent 10'000 MYT

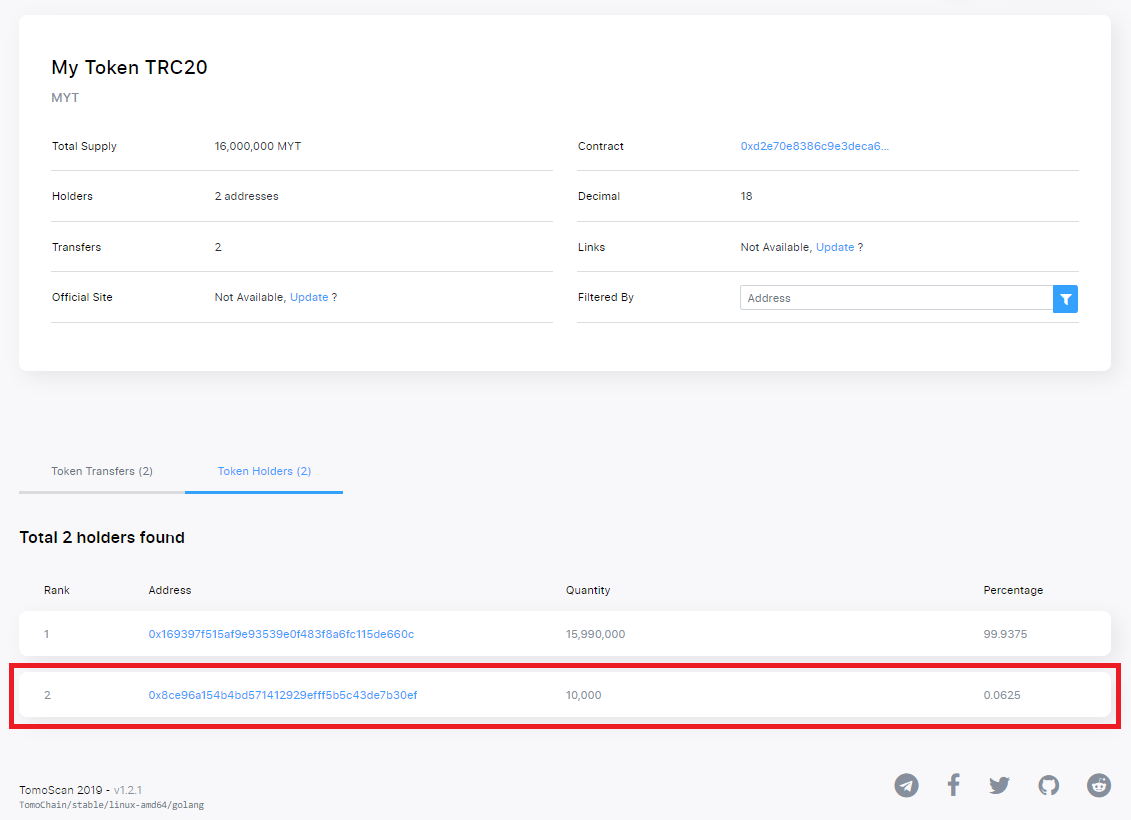

back to the buyer wallet. Here is the transaction of this tutorial on TomoScan.- The ICO/team: has
15'990'000 MYT
- Our buyer wallet: has
10'000 MYT

To see your new tokens on MetaMask, click the Menu icon on top left (below the Fox face). Click Add Token. Select Custom Token, paste the token address and hit Next.
You will see your
MYT
tokens.
Congratulations! The Crowdsale is working! We sent
20 TOMO
and we got back 10'000 MYT
.You can and should customize these two smart contracts
MyToken
and MyTokenCrowdsale
according to your needs. For instance, you can:- add an
openingTime
andclosingTime
to your crowdsale - set a different
rate
or bonuses with dates (example:rate: 600
during the first week (20% bonus), andrate: 500
the second week). - set a
cap
to your crowdsale, invalidating any purchases that would exceed that cap (example: sell 70% of tokens and the rest is for team, advisors, …) - set a minimum and maximum individual’s contributions
- create different rounds (like: PreSale and Crowdsale)
- only allow
whitelist
ed participants to purchase tokens. Useful for putting your KYC / AML whitelist on-chain! - and more… (visit link below)
You may also want to set up an ICO website with all the information about the ICO dates, rates, cap, etc.
Last modified 8mo ago
