An Example of Building a Dapp on TomoChain

This Guide is on how to develop a simple Smart Contract written in Solidity, and deploy it onto the TomoChain Testnet
This article will take you through the process of building a basic Dapp on TomoChain — an adoption tracking system for a pet shop!
In this guide we will be covering:
  • Setting up Truffle, the most popular development framework for Ethereum which also works perfectly for TomoChain
  • Creating a Truffle project
  • Creating a TomoChain wallet
  • Requesting free tokens using TomoChain faucet
  • Writing a smart contract
  • Compiling and migrating the smart contract to TomoChain
  • Connecting Metamask to TomoChain testnet
  • Creating a user interface to interact with the smart contract

What is TomoChain?

TomoChain is a scalable blockchain powered via Proof-of-Stake Voting (PoSV) consensus and used commercially by companies globally. TomoChain achieves 2000 TPS, 2-second blocktime, and ~$0 gas fees without compromising decentralization.
Our mission is to accelerate the onboarding of millions of users by empowering today’s applications with technology that masks the friction of Blockchain, all while retaining its underlying benefits.
The TomoChain blockchain and its product ecosystem allow businesses to build high-performance, feature-rich projects to support speed, privacy, usability, and liquidity. .
Every Dapp running on Ethereum can be easily ported to TomoChain

Why should developers build Dapps on TomoChain?

Remember CryptoKitties in 2017? A single Dapp brought the whole Ethereum blockchain to their knees. The network was congested, with endless waiting times for transaction confirmation and high transaction fees. Porting to TomoChain would seem a good idea for the cute kitties.
TomoChain mainnet can process 2'000 TPS, wich is 100x faster than the Ethereum blockchain, and for a fraction of the cost.
In this tutorial, we will see how to build a Dapp using Solidity and then deploy it to TomoChain blockchain.
Note: Because deploying a smart contract on mainnet is much similar to testnet, the differences are just the configuration information, this document will explicitly mention the differences where possible

0. Prerequisites

To start building your Dapp you will need to install some programs:
  • Install Node.js & npm (“Node.js Package Manager”)
  • Install Git
To check that Node is installed properly, open a console (admin PowerShell on Windows) and type node -v. This should print a version number, like v10.15.0.
To test npm, type npm -v and you should see the version number, like 6.4.1.

1. Getting Started: Installation

Truffle Framework is a great tool for developing Dapps. You can use Truffle to deploy your smart contracts to TomoChain.
We only need this single command to install Truffle, the popular development framework for Ethereum.
npm install -g truffle
You can verify that Truffle is correctly installed typing truffle version.

2. Creating a Truffle project

Truffle initializes in the current directory, so first create a directory in your development folder of choice and then move inside it.
mkdir pet-shop-tutorialcd pet-shop-tutorial
Let’s see how to create a Truffle project. There are two options. You can create a bare new project from scratch with no smart contracts included, and the other option for those just getting started, you can use Truffle Boxes, which are example applications and project templates.
There is a special Truffle Box for this tutorial called pet-shop, which includes the basic project structure as well as code for the user interface. Use the truffle unbox command to unpack this Truffle Box:
truffle unbox pet-shop
The default Truffle directory structure contains a series of folders and files. If you want to know more, please check Truffle tutorials.
Note: This tutorial is focused on the whole process to build a Dapp on TomoChain, so we will not enter into all the details.

3. Creating a TOMO Wallet

You will need a wallet address and some tokens. We will show you how to do it on both TomoChain Testnet and Mainnet.

3.1 Create a TOMO wallet and save your Mnemonic

You can create a new TOMO wallet using TomoWallet mobile app for iOS or the web version. Under Settings go to Advanced Settings, here you can Choose network and select TomoChain TestNet or TomoChain [mainnet].
Go to Settings menu, select Backup wallet and then Continue. Here you can see your wallet’s private key and the 12-word recovery phrase. Write down the 12-word recovery phrase.
You can also create a new TomoChain wallet with MetaMask, MyEtherWallet or TrustWallet. For instance, for mainnet you can go to MyEtherWallet and select TOMO ( on the top right corner. Enter a password and then Create a new wallet. Write down your recovery phrase.
For this tutorial, my wallet address (testnet) is:
My recovery phrase (12-word mnemonic) is:
myth ahead spin horn minute tag spirit please gospel infant clog camera
Write them down. This will be needed later. Notice that your wallet address (public key) and your recovery phrase will be different than mine.
Important! Always keep your private key and recovery phrase secret!

3.2 Get some TOMO funds

Tokens are required for different matters, like smart contract deployment or to use in DApps.
Testnet: Receive 15 free testnet TOMO tokens using TomoChain’s Faucet.
Mainnet: You need real TOMO tokens from exchanges.
Go to faucet and collect 30 TOMO. Now your wallet has enough balance to do everything in this tutorial so… let’s go ahead!

3.3 The Block Explorer

To check the balance of a wallet address, you can use TomoScan.

4. Writing the smart contract

We’ll start our Dapp by writing the smart contract that acts as the back-end logic and storage.
  1. 1.
    Create a new file named Adoption.sol in the contracts/ directory.
  2. 2.
    Copy the following code:
pragma solidity ^0.5.0;contract Adoption {
address[16] public adopters; // Adopting a pet
function adopt(uint petId) public returns (uint) {
// check that petId is in range of our adopters array
require(petId >= 0 && petId <= 15); // add the address who called this function to our adopter array
adopters[petId] = msg.sender; // return the petId provided as a confirmation
return petId;
} // Retrieving the adopters
function getAdopters() public view returns (address[16] memory) {
return adopters;
Note: Code from Truffle’s Pet-Shop tutorial — if you want to look deeper into the Solidity code, they slowly go through the Truffle link explaining the details.

5. Compiling

Solidity is a compiled language, meaning we need to compile our Solidity to bytecode for the Ethereum Virtual Machine (EVM) to execute. Think of it as translating our human-readable Solidity into something the EVM understands.
TomoChain is EVM-compatible, which means that every contract written in Ethereum can be seamlessly ported to TomoChain without effort
In a terminal, make sure you are in the root of the directory that contains the Dapp and type:
truffle compile
You should see output similar to the following:
Compiling ./contracts/Migrations.sol...
Compiling ./contracts/Adoption.sol...
Writing artifacts to ./build/contracts

6. Migration — Deploying

Now that we’ve successfully compiled, it’s time to migrate your smart contracts to TomoChain blockchain!
A migration is a deployment script meant to alter the state of your application’s contracts, moving it from one state to the next. (More about migrations in the Truffle documentation).

6.1 Create the migration scripts

Open the migrations/ directory and you will see one JavaScript file: 1_initial_migration_js. This handles deploying the Migrations.solcontract to observe subsequent smart contract migrations, and ensures we don't double-migrate unchanged contracts in the future.
Now we are ready to create our own migration script.
  1. 1.
    Create a new file named 2_deploy_contracts.js in the migrations/directory.
  2. 2.
    Add the following content to the 2_deploy_contracts.js file:
var Adoption = artifacts.require("Adoption");module.exports = function(deployer) {

6.2 Configure the migration networks in truffle.js

Now we are almost ready to deploy to TomoChain. Let’s see how to deploy your smart contract to a custom provider, any blockchain of your choice, like TomoChain.
Before starting the migration, we need to specify the blockchain where we want to deploy our smart contracts, specify the address to deploy — the wallet we just created, and optionally the gas, gas price, etc.
1. Install Truffle’s HDWalletProvider, a separate npm package to find and sign transactions for addresses derived from a 12-word mnemonic — in a certain blockchain. (Read more about HDWalletProvider.)
npm install truffle-hdwallet-provider
2. Open truffle.js file (truffle-config.js on Windows). You can edit here the migration settings: networks, chain IDs, gas... The current file has only a single network defined, you can define multiple. We will add three networks to migrate our Dapp: development, tomotestnet and tomomainnet.
The official TomoChain documentation — Networks is very handy. Both Testnet and Mainnet network configurations are described there. We need the RPC endpoint, the Chain id and the HD derivation path.
Replace the truffle.js file with this new content:
'use strict'var HDWalletProvider = require("truffle-hdwallet-provider");var mnemonic = '<PUT YOUR WALLET 12-WORD RECOVERY PHRASE HERE>';module.exports = {
networks: {
development: {
provider: () => new HDWalletProvider(
host: "",
port: "8545",
network_id: "*", // Match any network id
}, tomotestnet: {
provider: () => new HDWalletProvider(
network_id: "89",
gas: 2000000,
gasPrice: 10000000000000,
}, tomomainnet: {
provider: () => new HDWalletProvider(
network_id: "88",
gas: 2000000,
gasPrice: 10000000000000,
3. Remember to update the truffle.js file using your own wallet recovery phrase. Copy the 12 words obtained previously and paste it as the value of the mnemonic variable.
Done. Please notice the tomotestnet network will be used to deploy our smart contract. We have also added the tomomainnet network, in case you want to deploy to TomoChain Mainnet. However, if you are familiar with Ganache, you could use the development network to do the local test as well if you want to. Ganache is a locally running personal blockchain for Ethereum development you can use to deploy contracts, develop applications, and run tests.
We have added the migration configuration so we are now able to deploy to public blockchains like TomoChain (both testnet and mainnet).
Warning: In production, we highly recommend storing the mnemonic in another secret file (loaded from environment variables or a secure secret management system), to reduce the risk of the mnemonic becoming known. If someone knows your mnemonic, they have all of your addresses and private keys!
Want to try? With npm package dotenv you can load an environment variable from a file .env, — then update your truffle.js to use this secret mnemonic.

6.3 Start the migration

You should have your smart contract already compiled. Otherwise, now it’s a good time to do it with truffle compile.
Back in our terminal, migrate the contract to TomoChain testnet network:
truffle migrate --network tomotestnet
The migrations will start…
Starting migrations...
> Network name: 'tomotestnet'
> Network id: 89
> Block gas limit: 840000001_initial_migration.js
======================Deploying 'Migrations'
> transaction hash: 0x77d9cdf0fb810fd6cec8a5616a3519e7fa5d42ad07506802f0b6bc10fa9e8619
> Blocks: 2 Seconds: 4
> contract address: 0xA3919059C38b1783Ac41C336AAc6438ac5fd639d
> account: 0xc9b694877AcD4e2E100e095788A591249c38b9c5
> balance: 27.15156
> gas used: 284844
> gas price: 10000 gwei
> value sent: 0 ETH
> total cost: 2.84844 ETH> Saving migration to chain.
> Saving artifacts
> Total cost: 2.84844 ETH2_deploy_contracts.js
=====================Deploying 'Adoption'
> transaction hash: 0x1c48f603520147f8eebc984fadc944aa300ceab125cf40f77b1bb748460db272
> Blocks: 2 Seconds: 4
> contract address: 0xB4Bb4FebdA9ec02427767FFC86FfbC6C05Da2A73
> account: 0xc9b694877AcD4e2E100e095788A591249c38b9c5
> balance: 24.19238
> gas used: 253884
> gas price: 10000 gwei
> value sent: 0 ETH
> total cost: 2.53884 ETH> Saving migration to chain.
> Saving artifacts
> Total cost: 2.53884 ETHSummary
> Total deployments: 2
> Final cost: 5.38728 ETH
The transaction ID is:
The contract address is:
Congratulations! You have already deployed your smart contract to TomoChain. All this in just 8 seconds. We started with 30 TOMO and the deployment has costed 5.38 TOMO in gas fees.
Note: The command to deploy to TomoChain mainnet is very similar: truffle migrate --network tomomainnet

*** Troubleshooting ***

  • Error: smart contract creation cost is under allowance. Why? Increasing transaction fees for smart contract creation is one of the ways TomoChain defends against spamming attacks. Solution: edit truffle.js and add more gas/gas Price to deploy.
  • Error: insufficient funds for gas * price + value. Why? You don’t have enough tokens in your wallet for gas fees. Solution: you need more funds in your wallet to deploy, go to faucet and get more tokens.

6.4 Check the deployment transaction

If you want to verify that your contract was deployed successfully, you can check on TomoScan testnet (or mainnet). In the search field, type in the transaction ID for your new contract.
You should see details about the transaction, including the block number where the transaction was secured.
You can also enter your wallet address on the TomoScan search bar. You will find 4 transactions out. Your contract has been successfully deployed to TomoChain.
Congratulations! You’ve deployed your contract to TomoChain using Truffle. You have written your first smart contract and deployed it to a public blockchain. It’s time to interact with our smart contract now to make sure it does what we want.

7. Testing the smart contract

It is a good idea to test your smart contracts. You can write some tests in the test/ directory and execute with truffle test. Find more details on Truffle’s Pet Shop tutorial.

8. Creating a user interface to interact with the smart contract

Now we’ve created the smart contract and deployed it to TomoChain blockchain (testnet). It’s time to create a UI so that people can use the shop!
Included with the pet-shop Truffle Box was code for the app’s front-end. That code exists within the src/ directory.
The front-end doesn’t use a build system (webpack, grunt, etc.) to be as easy as possible to get started. The structure of the app is already there; we’ll add in the functions unique to Ethereum.
1. Open /src/js/app.js in a text editor.
2. Examine the file. Note that there is a global App object to manage our application, load in the pet data in init() and then call the function initWeb3(). The web3 JavaScript library interacts with the Ethereum blockchain. It can retrieve user accounts, send transactions, interact with smart contracts, and more.
3. The current file has some incomplete functions that you must fill in. Replace the old code and paste this new code:
App = {
web3Provider: null,
contracts: {},
init: async function() {
// Load pets.
$.getJSON('../pets.json', function(data) {
var petsRow = $('#petsRow');
var petTemplate = $('#petTemplate');
for (i = 0; i < data.length; i ++) {
petTemplate.find('img').attr('src', data[i].picture);
petTemplate.find('.btn-adopt').attr('data-id', data[i].id);
return await App.initWeb3();
}, initWeb3: async function() {
// Modern dapp browsers...
if (window.ethereum) {
App.web3Provider = window.ethereum;
try {
// Request account access
await window.ethereum.enable();
} catch (error) {
// User denied account access...
console.error("User denied account access")
// Legacy dapp browsers...
else if (window.web3) {
App.web3Provider = window.web3.currentProvider;
// If no injected web3 instance is detected, fall back to Ganache
else {
App.web3Provider = new Web3.providers.HttpProvider('http://localhost:7545');
web3 = new Web3(App.web3Provider);
return App.initContract();
}, initContract: function() {
$.getJSON('Adoption.json', function(data) {
// Get the necessary contract artifact file and instantiate it with truffle-contract
var AdoptionArtifact = data;
App.contracts.Adoption = TruffleContract(AdoptionArtifact); // Set the provider for our contract
App.contracts.Adoption.setProvider(App.web3Provider); // Use our contract to retrieve and mark the adopted pets
return App.markAdopted();
//---- return App.bindEvents();
}, bindEvents: function() {
$(document).on('click', '.btn-adopt', App.handleAdopt);
}, markAdopted: function(adopters, account) {
var adoptionInstance;
App.contracts.Adoption.deployed().then(function(instance) {
adoptionInstance = instance; return;
}).then(function(adopters) {
for (i = 0; i < adopters.length; i++) {
if (adopters[i] !== '0x0000000000000000000000000000000000000000') {

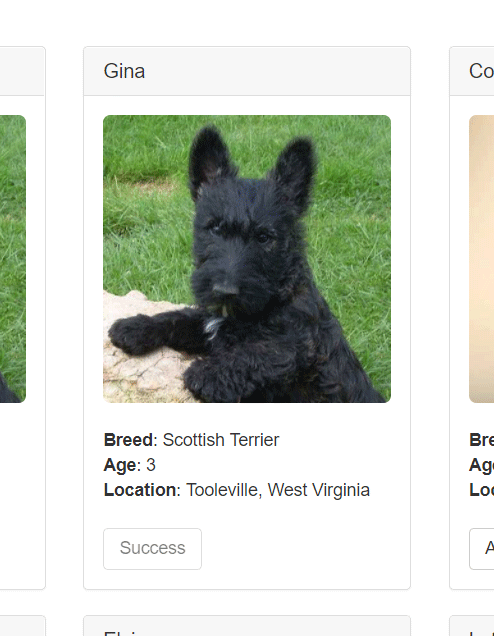

$('.panel-pet').eq(i).find('button').text('Success').attr('disabled', true);
}).catch(function(err) {
}, handleAdopt: function(event) {
event.preventDefault(); var petId = parseInt($('id')); //----
var adoptionInstance; web3.eth.getAccounts(function(error, accounts) {
if (error) {
} var account = accounts[0]; App.contracts.Adoption.deployed().then(function(instance) {
adoptionInstance = instance; // Execute adopt as a transaction by sending account
return adoptionInstance.adopt(petId, {from: account});
}).then(function(result) {
return App.markAdopted();
}).catch(function(err) {
};$(function() {
$(window).load(function() {
Here is what these functions do:
initWeb3() Checks if we are using modern DApp browsers or the more recent versions of MetaMask.
initContract() Retrieves the artifact file for our smart contract. Artifacts are information about our contract such as its deployed address and Application Binary Interface (ABI). The ABI is a JavaScript object defining how to interact with the contract including its variables, functions and their parameters. We then call the app's markAdopted()function in case any pets are already adopted from a previous visit.
markAdopted() After calling getAdopters(), we then loop through all of them, checking to see if an address is stored for each pet. Ethereum initializes the array with 16 empty addresses. This is why we check for an empty address string rather than null or other false value. Once a petIdwith a corresponding address is found, we disable its Adopt button and change the button text to "Success", so the user gets some feedback.
handleAdopt() We get the deployed contract and store the instance in adoptionInstance. We're going to send a transaction instead of a call by executing the adopt() function with both the pet's ID and an object containing the account address. Then, we proceed to call our markAdopted()function to sync the UI with our newly stored data.

9. Interacting with the Dapp in a browser

Now we’re ready to use our Dapp!

9.1 Install and configure MetaMask

  1. 1.
    Install the MetaMask browser extension in Chrome or FireFox.
  2. 2.
    Once installed, you’ll see the MetaMask fox icon next to your address bar. Click the icon and MetaMask will open up.
  3. 3.
    Create a New password. Then, write down the Secret Backup Phrase and accept the terms. By default, MetaMask will create a new Ethereum address for you.
4. Now we’re connected to the Ethereum network,with a brand new wallet with 0 ETH.
5. Let’s now connect MetaMask to TomoChain (testnet). Click the menu with the “Main Ethereum Network” and select Custom RPC. Use the Networks data from TomoChain (testnet) and click Save.
6. The network name at the top will switch to say “TomoChain testnet”. Now that we are on TomoChain network we can import TomoChain wallets.
We could use the TOMO wallet we created previously, but better let’s create a new TOMO wallet and add a few TOMO tokens — you know how to do it.
7. Once you have created your new TOMO wallet, copy the private key. Back to MetaMask, click on the top-right circle and select Import Account. Paste the private key and voilà! Your TOMO wallet is loaded in MetaMask.

9.2 Using the Dapp

We will now start a local web server and interact with the Dapp. We’re using the lite-server. This shipped with the pet-shop Truffle box.
The settings for this are in the files bs-config.json and package.json, if you want to take a look. These tell npm to run our local install of lite-serverwhen we execute npm run dev from the console.
  1. 1.
    Start the local web server:
npm run dev
The dev server will launch and automatically open a new browser tab containing your DApp.
Normally, a MetaMask notification automatically requests a connection.
2. To use the Dapp, click the Adopt button on the pet of your choice.
3. You’ll be automatically prompted to aprove the transaction by MetaMask. Set some Gas and click Confirm to approve the transaction.
4. You’ll see the button next to the adopted pet change to say “Success” and become disabled, just as we specified, because the pet has now been adopted.
And in MetaMask you’ll see the transaction listed:
Congratulations! You have taken a huge step to becoming a full-fledged Dapp developer. You have all the tools you need to start making more advanced Dapps and now you can make your Dapp live for others to use deploying to TomoChain.
